Power Supply
BP22 Battery Pack
Programmable Alkaline or Lithium battery pack for use in 5010, 5011 and 5011E Cable Levellers.
1 / 4
Request a Datasheet
Contact our team for full technical documentation, pricing, and availability for the BP22 Battery Pack.
📧 Contact UsOrdering Information
| BP22 Battery Pack | 01-22-0001 |
| BP22 Manual | 60-22-0010 |
Overview
Product Overview

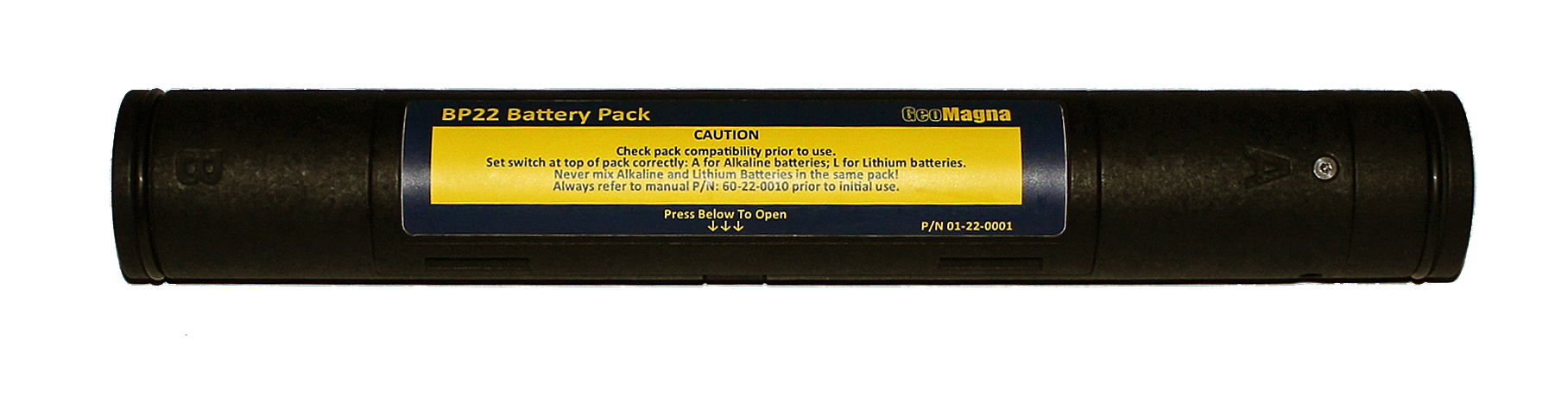

The BP22 Battery Pack is the latest in GeoMagna's range of seismic system battery packs. It provides a programmable Alkaline or Lithium battery pack for use in 5010, 5011 and 5011E seismic streamer cable levellers (Birds).
The pack is particularly useful for operations in areas where Lithium batteries are not easily obtainable and where it is not feasible to ship them to the seismic vessel due to safety issues. Customers have reported up to 30 days of operation with a set of Alkaline cells on a well-balanced streamer in calm weather conditions.
Key Features

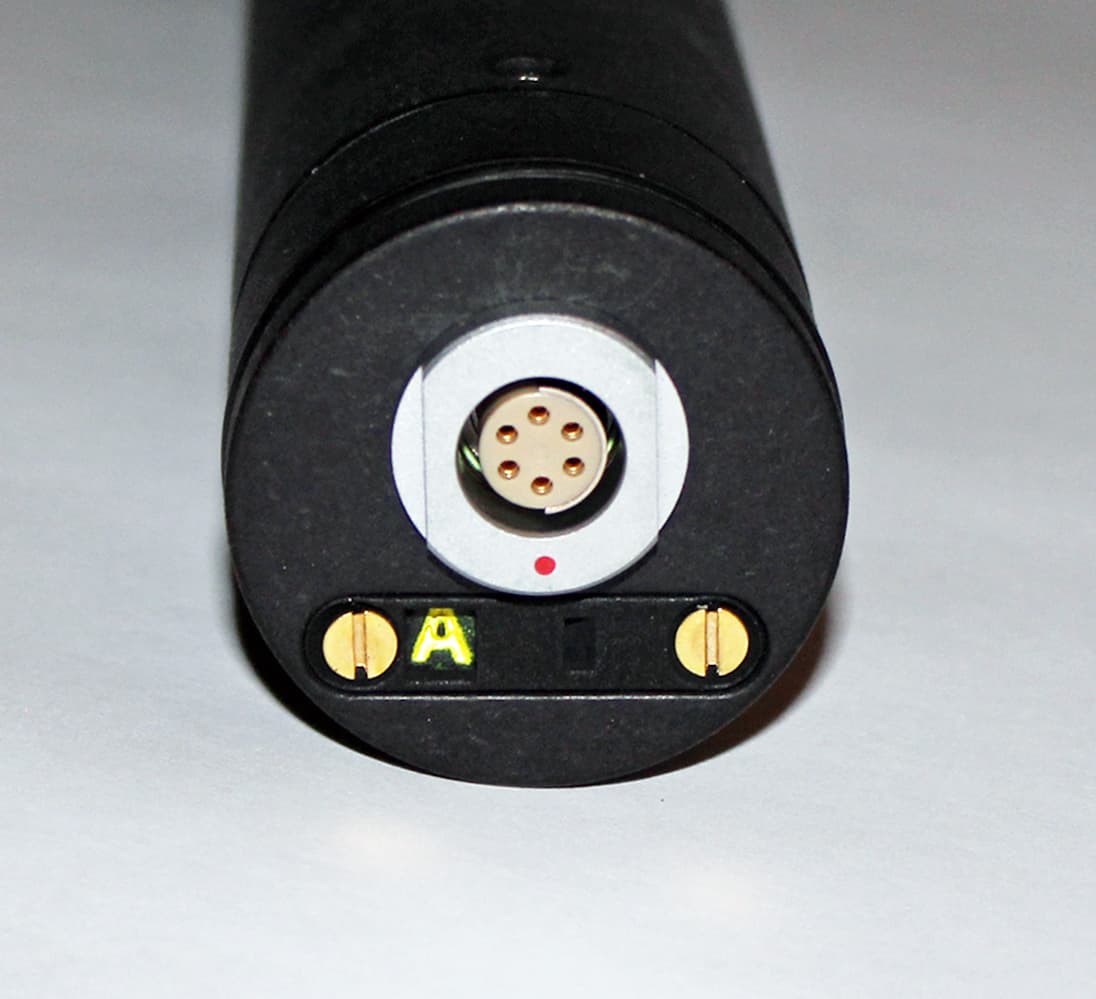

- Programmable for Alkaline or Lithium D-Cells via a simple sliding switch
- Switch protected by a cover to prevent accidental switching, with clear battery-type indication

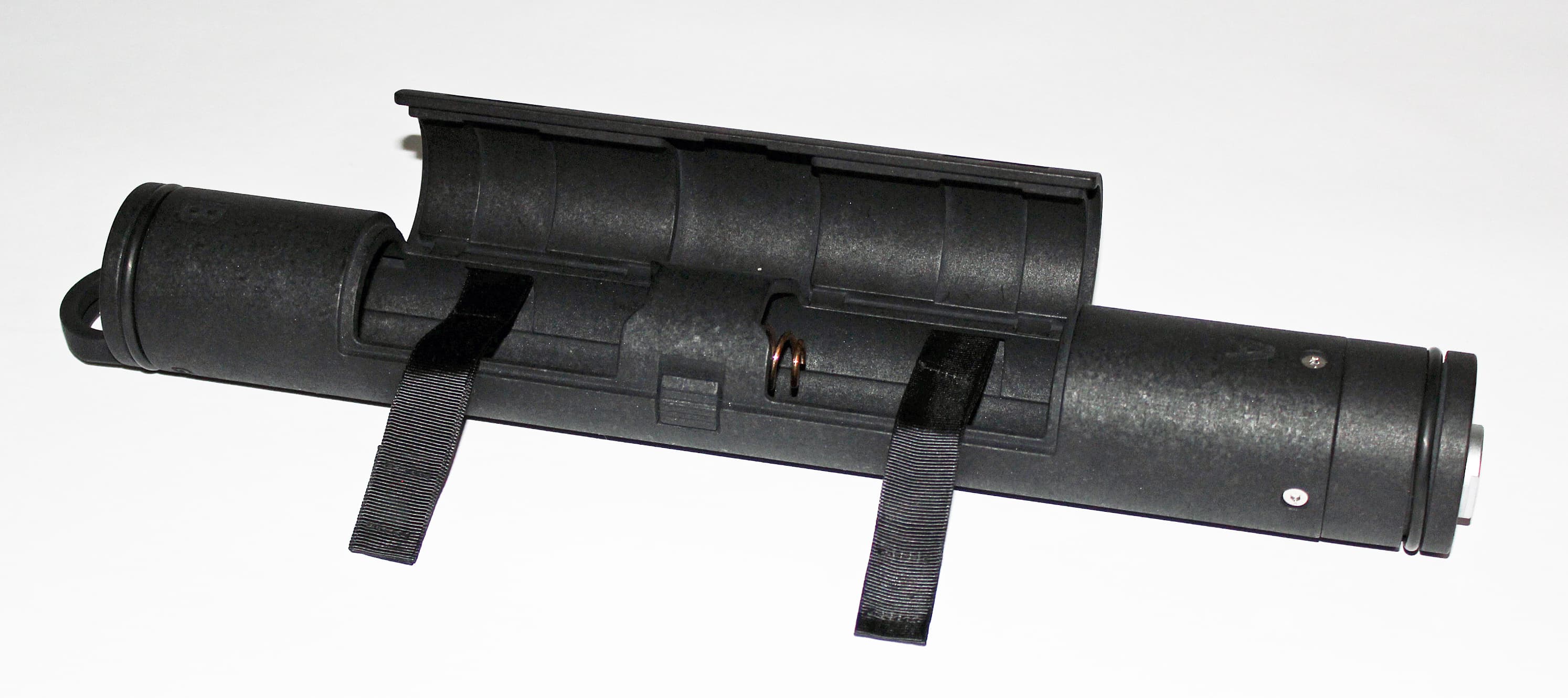

- Integral cover on a brass hinge provides splash protection for the battery compartment

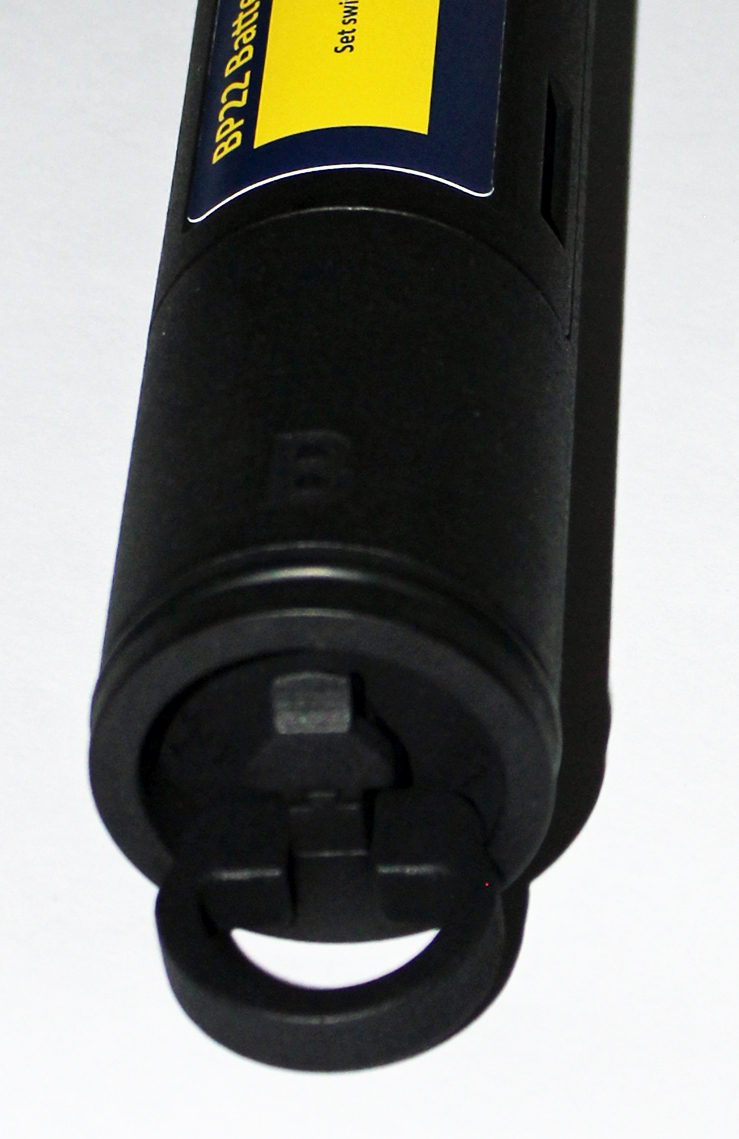

- Built-in recessed ring at the end of the pack allows tool-free removal from the Bird
- Built-in pull ribbons for easy battery removal
- Compatible with 5010, 5011 and 5011E Cable Levellers
Specifications
| Compatibility | 5010, 5011 & 5011E Cable Levellers |
|---|---|
| Battery Capacity (Lithium) | 4 × Lithium 3.6V D-Cells — two banks of 7.2V |
| Battery Capacity (Alkaline) | 4 × Alkaline 1.5V D-Cells — one bank of 6.4V |
| Splash Protection | Integral cover on brass hinge |
| Battery Removal | Integral pull ribbons |
